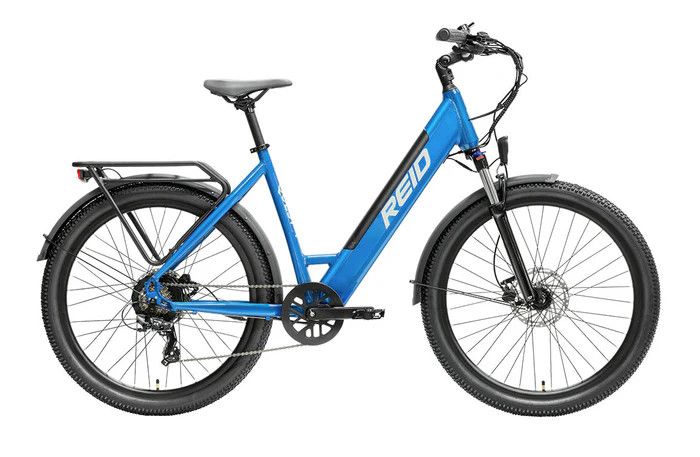

Embark on new adventures with the Quest 1 eBike, designed for versatile performance whether you're commuting, cruising, or exploring light trails. Its 6061 alloy frame features internal cable routing and an integrated 48V 14ah 672Wh battery, offering a sleek look and balanced weight distribution for a comfortable ride. The 80mm suspension fork smooths out bumps, enhancing comfort on varied surfaces.
Experience smooth electric assistance from the 500W rear hub motor, providing a steady boost to your pedaling. Your ride metrics are clearly visible on the LCD handlebar-mounted display. Gear changes are managed with an easy to use L-TWOO 7-speed trigger shifter paired with a Shimano rear derailleur and 14-28T freewheel, offering straightforward shifting that is ready for a wide variety of terrain.
Stopping is simple and controlled thanks to Tektro hydraulic disc brakes offering powerful braking in all conditions. Rolling on quality Kenda 27.5x2.35" tires, the Quest 1 provides excellent stability, traction, and comfort wherever your riding takes you. The alloy riser bars (700mm) and an adjustable A-head 80mm stem allow for a customizable and comfortable riding posture. A plush comfort plus saddle and ergo rubber grips complete the package, ensuring every journey is a pleasant one.
| Frame | 6061 alloy with internal cable routing and integrated battery |
|---|---|
| Fork | Uding D5 80mm travel with lockout, QR axle |
| Tires | Kenda K1153 27.5x2.35" |
|---|---|
| Rims | 27.5 double wall alloy, 36H |
| Hubs | Alloy quick release front, rear hub motor |
| Battery | Downtube integrated 48V 14Ah 672Wh battery |
|---|---|
| Motor | Ananda R520 48V 500W (768W peak power) rear hub motor, 65nm |
| Display | Ananda DF229 color display with Bluetooth connectivity via Ananda app |
| Throttle | 300X speed lever with up to 20mph assistance |
| Range | Up to approx 60 miles / 97km dependent on terrain and riding style |
| Max Speed | 20mph / 32km/h |
| Ebike Class | Class 2 |
| Battery Safety Certification | UL2271 |
| Shifters | LTWOO A2 7 speed shifter |
|---|---|
| Chainset | Prowheel alloy 42T 170mm |
| Chain | KMC Z7 7 speed chain |
| Brakes | Tektro HD-E3120 hydraulic disc brake with motor cut-off, 180mm rotors |
| Bottom Bracket | Sealed square taper |
| Cassette/Freewheel | Shimano 7 speed freewheel 14-28T |
| Rear Derailleur | Shimano TY300 7 speed derailleur |
| Handlebar | Alloy riser bar 700mm wide, 25mm rise, 31.8mm clamp |
|---|---|
| Stem | Alloy A head adjustable stem, 80mm length, 31.8mm clamp |
| Headset | Semi integrated headset |
| Grips/Tape | Ergo comfort grips |
| Saddle | Comfort Plus saddle |
| Seatpost | Alloy 30.9mm 350mm length |
| Pedals | Alloy platform pedals |
| Seatpost Clamp | Alloy quick release 34.9mm |
| Mudguards | Front and rear mudguards |
|---|---|
| Kickstand | Alloy kickstand |
| Rear Rack | Custom rear rack, max capacity 59lbs / 27kg |
| Front Light | LED front light |
|---|---|
| Rear Light | LED rear light |
| Bike Weight | Approx 51lbs / 23kg |
| Total Payload | 302lbs / 137kg |
